AP-200PHN
The AP-200PHN type electrostatic capacitive material level meter can be used in the material level measurement of a variety of occasions, because of the instrument measuring probe using the disc sensor element, improve the reliability of the measurement. The whole measuring probe made of special materials, high temperature of 1200 degrees celsius. The typical application example is the measurement of the dry interest red coke at high temperature (1200℃ ) CDQ
Details
The AP-200PHN type electrostatic capacitive material level meter can be used in the material level measurement of a variety of occasions, because of the instrument measuring probe using the disc sensor element, improve the reliability of the measurement. The whole measuring probe made of special materials, high temperature of 1200 degrees celsius. The typical application example is the measurement of the dry interest red coke at high temperature (1200℃ ) CDQ .
Technical index:
Use range: coke, liquid, powder, ash
Probe operating temperature: 1200°C
Power supply: 50/60Hz 110/220AC
Output: 250V 10A IC AC contact
Delay: 1 to 5 seconds, 1 to 4 points
Connecting cable: 10M
Protection: IP67
1 There is no mechanical moving parts,so long life, maintenance and inspection are easy to carry out.
2 The optimal regulation of sensitivity can be achieved by using a simple scale operation.
3 In order to prevent the impact of the surrounding environment, the machine has become a waterproof sealing structure.
4 Inside a unique electrostatic removal circuit. Electronic circuits are protected by the electrical charge of the measurement.
5 The influence of the main part of the electrode to the dust, water droplets and other attachments can be suppressed to the minimum, and can be measured for a long time.
6 High mechanical strength.
7 Can also be used for high temperature and high pressure measurement.
8 It is very suitable for detecting the concentration of hydrogen ion and the strength of the change.
9 Liquid contact part adopts acid resistant, alkali resistant properties, so it has good corrosion resistance.
10. With the help of the delay circuit (choice) can prevention due to wave, sharp changes in the position of the droplet are caused by a fault and can be handled correctly.
11 Electronic timer, 1 to 5 seconds, 1 to 4 points (button changes) and other different types of use.
Installation notes
Probe position should energizer away from outlet, to avoid the impact of materials on the probe
The distance between the probe and the controller is within the 10m.
Probe allows down tilt mounting
When the same hopper is installed in several electrodes, in order to avoid the electrode surface sticky stuff, as well as the contact between the electrodes, as far as possible to pull apart

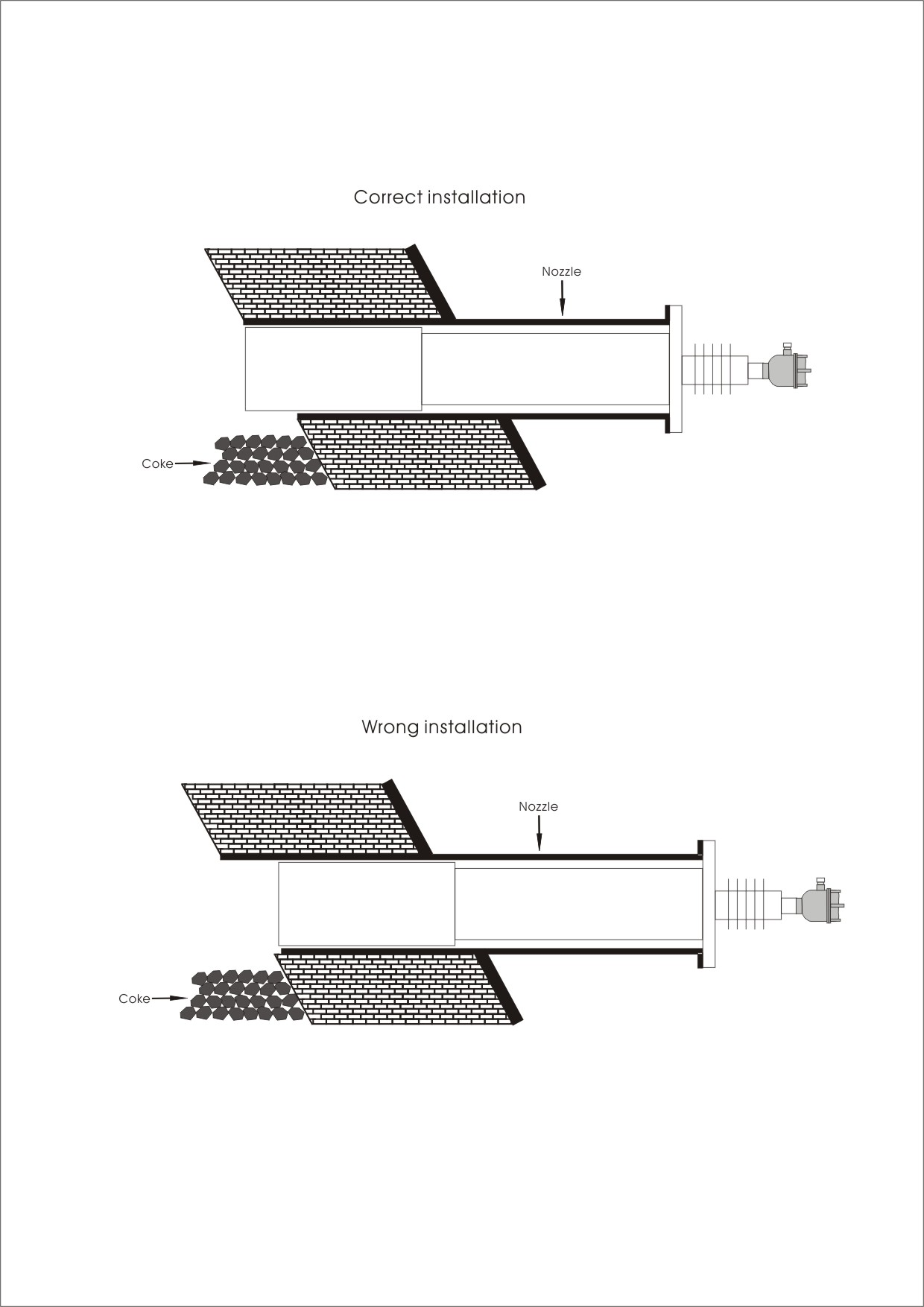

The black part of the picture is the customer's offer.
Please install a bushing (Nozzle) to protect the probe part and the insulating sleeve.
Technical index:
Use range: coke, liquid, powder, ash
Probe operating temperature: 1200°C
Power supply: 50/60Hz 110/220AC
Output: 250V 10A IC AC contact
Delay: 1 to 5 seconds, 1 to 4 points
Connecting cable: 10M
Protection: IP67
1 There is no mechanical moving parts,so long life, maintenance and inspection are easy to carry out.
2 The optimal regulation of sensitivity can be achieved by using a simple scale operation.
3 In order to prevent the impact of the surrounding environment, the machine has become a waterproof sealing structure.
4 Inside a unique electrostatic removal circuit. Electronic circuits are protected by the electrical charge of the measurement.
5 The influence of the main part of the electrode to the dust, water droplets and other attachments can be suppressed to the minimum, and can be measured for a long time.
6 High mechanical strength.
7 Can also be used for high temperature and high pressure measurement.
8 It is very suitable for detecting the concentration of hydrogen ion and the strength of the change.
9 Liquid contact part adopts acid resistant, alkali resistant properties, so it has good corrosion resistance.
10. With the help of the delay circuit (choice) can prevention due to wave, sharp changes in the position of the droplet are caused by a fault and can be handled correctly.
11 Electronic timer, 1 to 5 seconds, 1 to 4 points (button changes) and other different types of use.
Installation notes
Probe position should energizer away from outlet, to avoid the impact of materials on the probe
The distance between the probe and the controller is within the 10m.
Probe allows down tilt mounting
When the same hopper is installed in several electrodes, in order to avoid the electrode surface sticky stuff, as well as the contact between the electrodes, as far as possible to pull apart
The black part of the picture is the customer's offer.
Please install a bushing (Nozzle) to protect the probe part and the insulating sleeve.
